SPECTRUM 375 CUTMATE




Plasma System Checklist
Note: Most common weld output shown

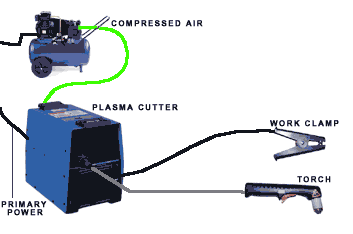

Plasma Cutters System Checklist
System Item Model Stock No. Price
Required Items
Power Source
Torch
Primary Cable, Plug/Receptacles
Compressed Air / Nitrogen
Gas Hose w / fittings
Hearing Protective device
Safety Face Shield
Gloves & Protective Clothing
Optional Items - where applicable
Air filter / dryer
Cable Covers
Torch Consumable Kit
Running Gear


List Price
Starting at:
$ 1,475.00 (US $)

Industrial Applications
  • Auto Body
  • Maintenance
  • Fabrication
  • Light Construction
  • HVAC Ductwork
  • Prototyping

Cutting Capability
  • 1/16 in Stand off Cutting...Drag Cutting
  • Rated: 3/8 in (10mm)... 5/16 in (8mm)
  • Quality: 1/2 in (13mm) ... 3/8 in (10mm)
  • Sever: 5/8 in (16mm)... 1/2 in (13mm)

Rated Output
  • 27 A at 90 VDC, 35% Duty Cycle

Plasma Gas Flow/Pressure
  • 4.5 CFM (129 L/min) at 60 PSI (414 kPa)

Net Weight
  • 49 lb (22 kg)


  • Plasma cutter
  • ICE-27C hand-held torch with 20 ft cable. (accepts consumables from prior ICE-25C) model torch.
  • 15 ft HEAVY-DUTY work cable with clamp
  • Extra consumables (3 electrodes, 3 tips, and 1 air fitting)
  • 10 ft power cord with 115 VAC, 20 A plug
  • Easy-to-connect, built-in gas/air filter and regulator with extra protection.
